Mako Ball Valves

Mako's threaded ball valves offer superior quality and efficient flow control, saving costs for oil & gas supply, chemical plant supply, manufacturing supply, and many other flow control industries across North America. Additionally, many series come in stainless steel and carbon steel options.

Mako Products’ top-quality ball valves are available in a variety of sizes and options, such as locking handles, one-piece or two-piece bodies, fire-safe, and a full range of pressure options from 1,000 PSI to 10,000 PSI. We also offer a wide range of seat and packing materials such as PTFE, RPTFE, Delrin, and PEEK. Full port / full bore and reduced port / reduced bore options are available.

Mako ball valves are built for smooth torque and leak free performance in all scenarios making them the right choice for quality and performance at a very competitive price. Need help finding valve that is right for you? Contact us today and our customer care team will help you find the right part for the job.

← Back to All ProductsDownload Spec Sheet Catalog

Available Product Series

2017KS Series

1K PSI | One Piece Cast Stainless | Reduced Port

  • 1/4" - 3"
  • 1,000 PSI Rated
  • 316 Stainless

2017C Series

2K PSI | Bar Stock Carbon Steel | Reduced Port

  • 1/4" - 2"
  • 2,000 PSI Rated
  • Stainless Ball & Stem

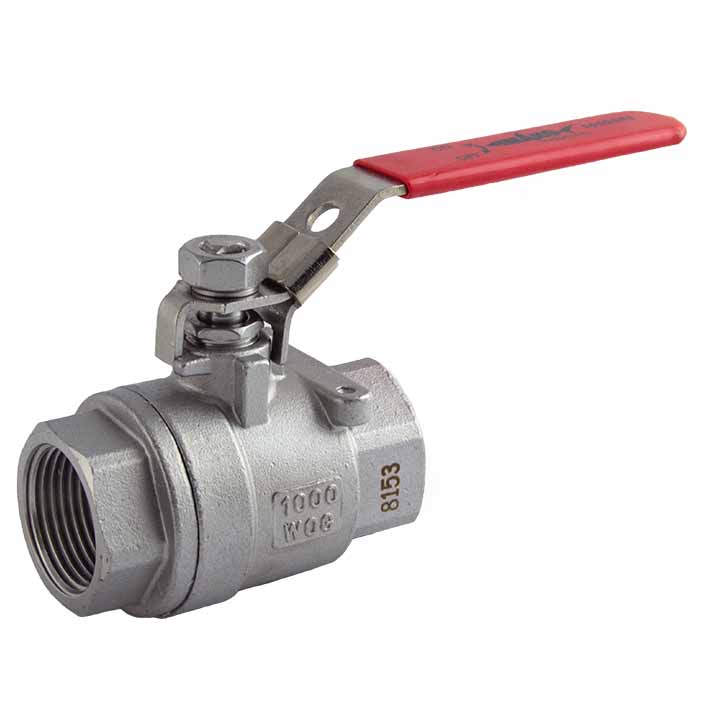

1000S series

1K PSI | Stainless | Full Port

  • 1/4" - 3"
  • Full Port
  • 316 Stainless

2006HLS Series

2K PSI | Stainless | Full Port

  • 1/4" - 4"
  • 1,500 - 2,000 PSI Rated
  • Full Port

2006HLC Series

2K PSI | Carbon Steel | Full Port

  • 1/4" - 4"
  • 1,000 - 2,000 PSI Rated
  • Full Port

3600S Series

3.6 KPSI | Stainless Steel

  • 1/4" - 2"
  • 3,600 PSI Rated
  • 316 Stainless
  • 3 Point Mounting Pad

3600C Series

3.6 KPSI | Carbon Steel

  • 1/4" - 2"
  • 3,600 PSI Rated
  • 316L Stainless Internals
  • 3 Point Mounting Pad

6000S Series

6 KPSI | Stainless Steel

  • 1/4" - 2"
  • 6,000 PSI Rated
  • 316 Stainless
  • Fire Safe
  • 3 Point Mounting Pad

6000C Series

6 KPSI | Carbon Steel

  • 1/4" - 2"
  • 6,000 PSI Rated
  • Seal Welded
  • Fire Safe
  • 3 Point Mounting Pad

10000HS Series

10 KPSI | Stainless Steel

  • 1/4" - 1/2"
  • 10,000 PSI Rated
  • 316 Stainless
  • 3 Point Mounting Pad

2006HLS-IMP Series

Actuation Ready | 2K PSI | Stainless | Full Port

  • 1/2", 1", & 2"
  • 2,000 PSI Rated
  • Full Port
  • Actuation Ready

2006S-ISO Series

1.5 - 2K PSI | Stainless Steel

  • 1" - 2" MXF NPT
  • 1/4" Bleed All Sizes
  • 1,500 - 2,000 PSI
  • Seal Welded

2006C-ISO Series

1.5 - 2K PSI | Carbon Steel

  • 1" - 3" MXF NPT
  • 1/4" Bleed All Sizes
  • 1,500 - 2,000 PSI
  • Seal Welded

2000S Series

2K PSI | One Piece Bar Stock

  • 2,000 PSI Rated
  • 316 Stainless
  • 1/4"-1/2" MXF NPT

2006SR Series

2K PSI | Stainless | Spring Return Handle

  • 3/8 - 2" FNPT
  • 2,000 PSI
  • 316 Stainless

2006CSR Series

2K PSI | Carbon Steel | Spring Return Handle

  • 3/8" - 1" FNPT
  • 2,000 PSI
  • Carbon Steel

Series Information

Stainless Steel vs Carbon Steel

While comparing ball valve options, it is important to assess industry and environment in which they will be used, as well as the factors that could affect their productivity:

Benefits of Stainless Steel Ball Valves

  • Corrosion resistant - Added chromium in these valves helps them to avoid damage from corrosion
  • Higher and wider working temperature range
  • Harder metal means they are more resilient to physical damage in tough environments
  • Longer life cycle - more costly up front, but often saves money over the long run.

Benefits of Carbon Steel Ball Valves

  • Carbon is more cost-efficient than stainless steel for smaller budgets.
  • These valves are better for shorter term installations where corrosion is less of an environmental factor
  • Carbon is much stronger than brass alternatives

Locking Handles

Locking Handle ball valve options offered by Mako Products Include:

  • 2017KS series
  • 1000S series
  • 2006HLC series
  • 2006HLS series
  • 2006C-ISO series
  • 2006S-ISO series
  • 3600C series
  • 3600S series
  • 6000C series
  • 6000S series
  • 10000S series

Isolator Valves

Mako isolator valves provide a rational flow system. They are typical maintenance and safety purpose valves to be used in applications where they're generally left open so the handler can control flow when needed.

Common Isolator Valve Applications

  • Pipeline Safety Systems
  • Residential Plumbing Systems
  • Oil and Gas Wells
  • Firewater Control

Fire Safe Ball Valves

  • Delrin seats and thrust washers
  • Floating balls
  • NACE MR-0175 Compliant
  • Fire Safe Approved per API 607 5th Ed.
  • Blow-out proof stems
  • Available in 3,600 PSI and 6,000 PSI options

After considering the benefits and options available, we are confident you will find that ball valves supplied by Mako Products will increase your fluid or gas flow efficiencies, work harder under harsh temperature and environmental conditions, have a longer life cycle, and be an overall cost-saving solution. Contact us today!
